AB-1R12-1097
Description

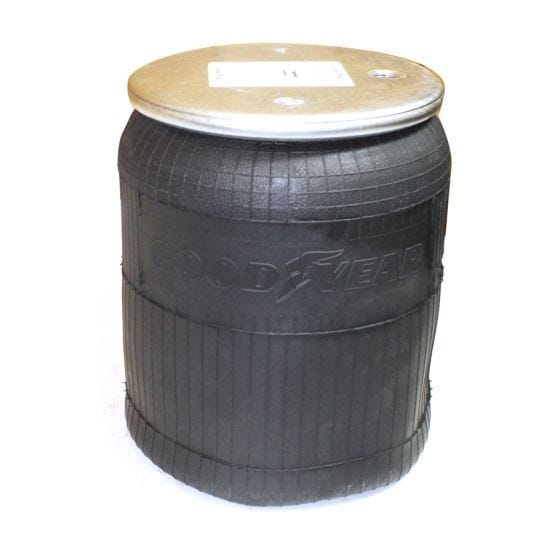

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
AB1DK23L-8864, AB1DK23L8864, 352-8864, 3528864, 452-8864, 4528864, W01-358-8864, W013588864, 8864, 1R12-1097, 1R121097, AB1R121097, AS-8898, AS8898, 9 10-19 P 898, 91019P898, 66666
Weight
13.20
- Attribute Value
- Product Name AB-1R12-1097
- Top Plate Bolt Hole Quantity 3
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 8 in
- Piston Material Plastic
- Minimum Height 7.8 in
- Maximum Height 24 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper No
- Bellows Number 566-24-3-172
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Kenworth, Peterbilt
