AB-1R12-1049
Description

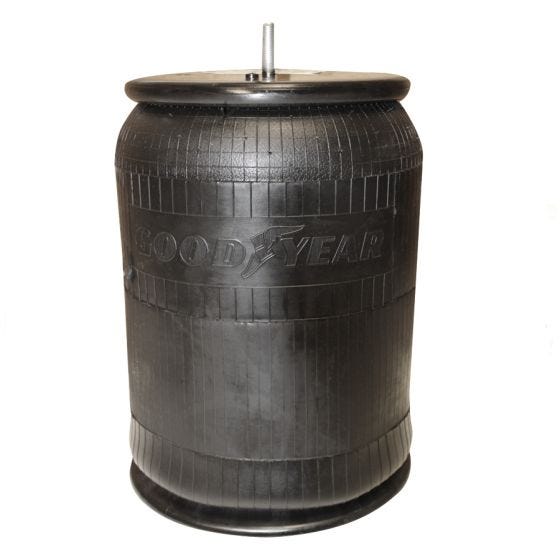

Genuine Goodyear Air Spring - Rolling Lobe w/ Composite Piston
Alternate SKU
1R12-1049, 1R12-654, SR8468, W01-M58-8468, 8468, 9 10S-17 P 1206, 75561, AS-81206, 566.CT75561, AB1DF23H-P1206, AB1DK23K-C395, AB1DF23H-P1206, 566.ER8468, 352-8468, 452-8468, 452-8468L, 452-8468P
Weight (lb)
13.00
- Attribute Value
- Product Name AB-1R12-1049
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9.0 in
- Bottom Plate Diameter 10.0 in
- Piston Material Plastic
- Minimum Height 6.7 in
- Maximum Height 22.0in
- Top Plate Center To Center Diameter 2.75 in
- Bottom Plate Center To Center Diameter 0
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper No
- Bellows Number 566-24-3-097, 566-24-3-164
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann 566.CT75561, AB1DF23H-P1206, AB1DK23K-C395, AB1DF23H-P1206, 566.ER8468
- Automann Bellows 1DF23H
- Continental 75561
- Continental Bellows 9 10S-17
- Dayton 352-8468, 452-8468
- Firestone W01-M58-8468
- Firestone Bellows 1T15XMR7
- Flagg/Triangle AS-81206
- Goodyear 1R12-1049
- Goodyear Bellows 566-24-3-097, 566-24-3-164
