AB-1R12-1048
Description

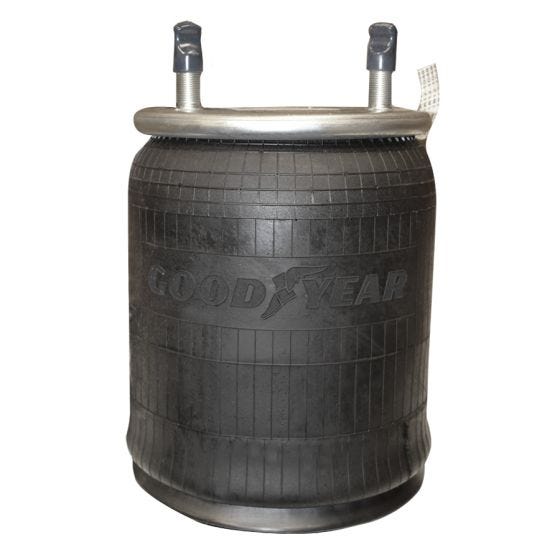

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
AB1DK23P-9974, AB1DK23P9974, 352-9974, 3529974, 452-9974, 4529974, AS-8930, AS8930, W01-358-9974, W013589974, 9974, 1R12-1048, 1R121048, AB1R121048, 9 10-17.5 A 930, 910175A930, 67586, 905-57-332, 90557332
Weight
21.00
- Attribute Value
- Product Name AB-1R12-1048
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.8 in
- Piston Material Plastic
- Minimum Height 7.3 in
- Maximum Height 23.2 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper No
- Bellows Number 566-24-3-097
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson, Navistar/International, Neway, Reyco, Volvo, Watson & Chalin
- Company Sku
- Automann AB1DK23P-9974
- Automann Bellows 1DK23P
- Continental 67586
- Continental Bellows 9 10-17.5
- Dayton 352-9974, 452-9974
- Firestone W01-358-9974
- Firestone Bellows 1T15M-7.5
- Flagg/Triangle AS-8930
- Flagg/Triangle Bellows 6364/69/91/6414
- Goodyear 1R12-1048
- Goodyear Bellows 566-24-3-097
