AB-1R12-1047
Description
Genuine Goodyear Air Spring - Rolling Lobe w/ Composite Piston
Alternate SKU
1R12-1047, 352-9807, 452-9807, 452-9807, 566.CT68151, 566.ER9807, AB1DK23I-9807, W01-358-9807, 9807, 1T15M2, 90557372, 50857000, 9 10-13.5 P 874, 68151, AS98070, AS9807, AS-8874, 1T15VP4, 910135, 1T15M-2, 9 10-13.5, 566-24-3-142
Weight (lb)
12.00

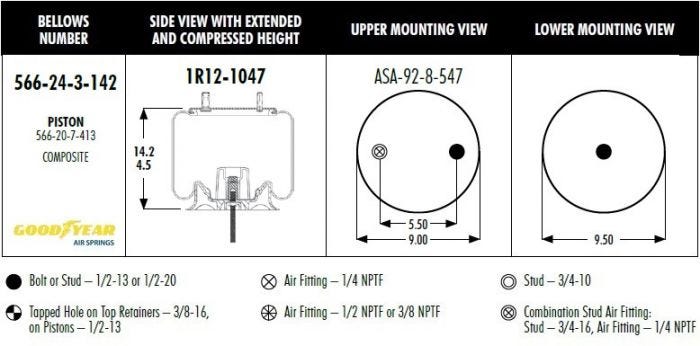

- Attribute Value
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.5 in
- Piston Material Plastic
- Minimum Height 4.5 in
- Maximum Height 14.2 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper No
- Bellows Number 566-24-3-142
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Mounting Hardware Included No
- Air Spring Type Rolling Lobe
- Company Sku
- Automann 566.CT68151, 566.ER9807, AB1DK23I-9807
- Automann Bellows 1DK23I
- Continental 68151
- Continental Bellows 9 10-13.5
- Dayton 352-9807, 452-9807, 452-9807
- Firestone W01-358-9807
- Firestone Bellows 1T15M-2
- Flagg/Triangle AS-8874
- Flagg/Triangle Bellows 1T15VP4, 910135
- Goodyear 1R12-1047
- Goodyear Bellows 566-24-3-142
