AB-1R12-095
Description

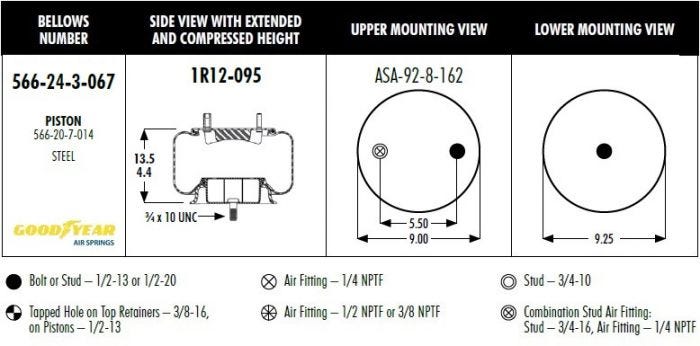

Genuine Goodyear Air Spring - Rolling Lobe w/ Steel Piston
Alternate SKU
1R12-095, 352-9039, 452-9039, 452-9039L, 566.CT64260, 566.ER9039, 566.ER9307, 566.ER9039A, 566.CT67490, AB1DK23F-9039, 566.CT64439, AB1DK23F-9307, AS4319, AS-8311, 8311, 4319, 3529039, EFS9039, W01-358-9039, 9039, W01-358-9108, 9108, W01-358-9307, 9307, H-9424-01, H-9424-03, 1003589039C, 101827, P50-734, AS-0012, 9 10-10 P 311, 64260, 12TA12, 200457, 21100010, 300961250, 554766C1, 6336202, 85101153, 90557129, 90044199, 90557011, 90557023, 90557085, 91010P311, RL90390, S-2061C, B-11650, S-11650, B-2064, S-2064, SC-2033, 566-24-3-002, 566-24-3-007, 566-24-3-030, 566-24-3-033, 566-24-3-035, 566-24-3-050, 566-24-3-056, 566-24-3-067, 566-24-3-104, 566-24-3-113, 1T15M0.5, 1T15M0
Weight (lb)
15.00
- Attribute Value
- Make Bluebird, Hendrickson, Hutchens, Nissan, Watson & Chalin
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.25 in
- Piston Material Steel
- Minimum Height 4.4 in
- Maximum Height 13.5 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-002, 566-24-3-007, 566-24-3-030, 566-24-3-033, 566-24-3-035, 566-24-3-050, 566-24-3-056, 566-24-3-067, 566-24-3-104, 566-24-3-113
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Mounting Hardware Included No
- Air Spring Type Rolling Lobe
- Company Sku
- Automann 566.CT64260, 566.ER9039, 566.ER9307, 566.ER9039A, 566.CT67490, AB1DK23F-9039, 566.CT64439, AB1DK23F-9307
- Automann Bellows 6360
- Blue Bird 12TA-1-2, 300-961250
- Continental 64260
- Continental Bellows 9 10-10
- Dayton 352-9039, 452-9039, 452-9039L
- Firestone W01-358-9039, W01-358-9108, W01-358-9307
- Firestone Bellows 1T15M0.5, 1T15M0
- Flagg/Triangle AS-8311
- Goodyear 1R12-095
- Goodyear Bellows 566-24-3-002, 566-24-3-007, 566-24-3-030, 566-24-3-033, 566-24-3-035, 566-24-3-050, 566-24-3-056, 566-24-3-067, 566-24-3-104, 566-24-3-113
- Hendrickson B-11650, B-2064
- Hutchens 9424-01, 9424-03
- Navistar/International 554766C1
- Neway 905-57-011, 905-57-023, 905-57-085
- Ridewell 1003589039C, 1013589039C, S-2061-C, S-5356-C
- Watson & Chalin AS-0012
