AB-1R12-090
Description

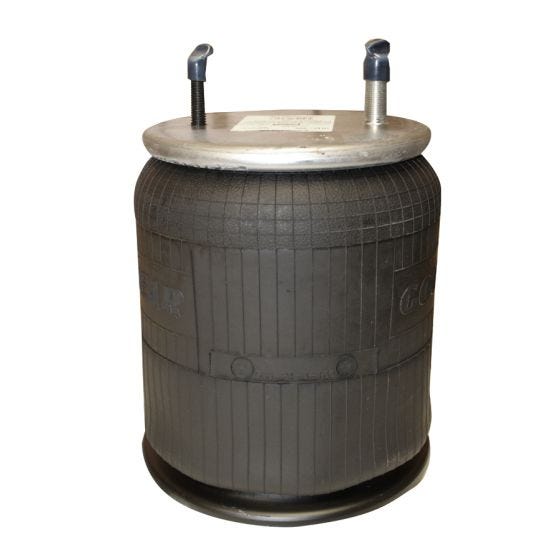

Genuine Goodyear Air Spring - Rolling Lobe w/ Steel Piston
Alternate SKU
452-9213, 452-9213L, 352-9213, 1R12-090, 9213, W01-358-9213, W01-358-0748, 566.ER9213S, AB1DK23K-P407, 566.CT64262, 566.CT64308, AB1DK23K-9213, AS-8441, AS-8407, AS4073, AS92130, 501559C1, 501159C2, 1660581C1, 2027911C1, SC2048, 57009213, 3918329, 85101156, 9 10-16 P 407, 64262, 9 10-16 P 441, 64308, 1686386C1, 1660581C1, 3130495, M3522, 1003589213C, AB-9213, 64262, 64308
Weight (lb)
17.00
- Attribute Value
- Product Name AB-1R12-090
- Make Navistar/International, Volvo
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 2
- Top Plate Diameter 9 in
- Bottom Plate Diameter 10.1 in
- Piston Material Steel
- Minimum Height 6.5 in
- Maximum Height 20.5 in
- Top Plate Center To Center Diameter 5.5
- Bottom Plate Center To Center Diameter 4.12
- Bottom Plate Alignment 45 Degree
- Bracket No
- Bumper No
- Bellows Number 566-24-3-008, 566-24-3-010, 566-24-3-011, 566-24-3-038
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Grade Type Regular
- Air Spring Type Rolling Lobe
- Company Sku
- Automann 566.ER9213S, AB1DK23K-P407, 566.CT64262, 566.CT64308, AB1DK23K-9213
- Automann Bellows 1DK23K
- Continental 64262, 64308
- Continental Bellows 9 10-16
- Dayton 452-9213, 352-9213
- Firestone W01-358-9213
- Firestone Bellows 1T15M6
- Flagg/Triangle AS-8407, AS-8441
- Flagg/Triangle Bellows 6363
- Goodyear 1R12-090
- Goodyear Bellows 566-24-3-008, 566-24-3-010, 566-24-3-011, 566-24-3-038
