AB-1R12-069
Description

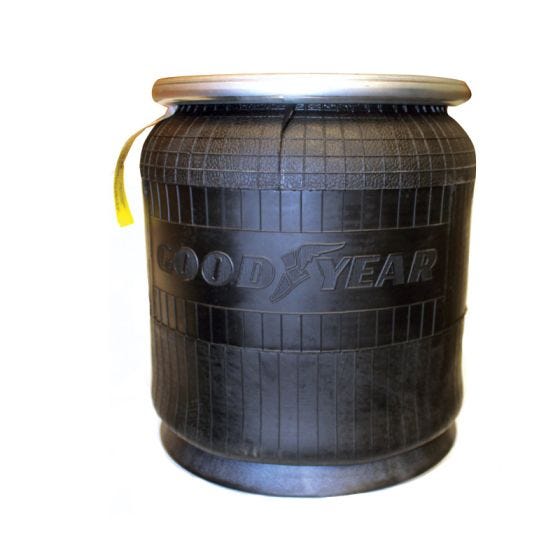

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
AB1DK23I-9069, AB1DK23I9069, 352-9069, 3529069, 452-9069, 4529069, AS-8312, AS8312, 554764C1, S-13031, S13031, 301649, 302038, 302456, 304759, 306746, 307112, 310042, C81-6022, C816022, 85101145, W01-358-9069, W013589069, W01-358-8923, W013588923, 9069, 8923, 9 10-14 P 312, 91014P312, 64274, 1R12-069, 1R12069, AB1R12069, 1R12-669, 1R12669, AB1R12669, AB-1R12-669
Weight
16.00
- Attribute Value
- Product Name AB-1R12-069
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.8 in
- Piston Material Plastic
- Minimum Height 7.5 in
- Maximum Height 21.1 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-038
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson, Navistar/International, Neway, Peterbilt, Volvo
- Company Sku
- Automann AB1DK23I-9069
- Automann Bellows 1DK23I
- Continental 64274
- Continental Bellows 9 10-14
- Dayton 352-9069, 452-9069
- Firestone W01-358-9069
- Firestone Bellows 1T15M-4/1T15VP-4
- Flagg/Triangle AS-8312
- Flagg/Triangle Bellows 6362/85/88
- Goodyear 1R12-069
- Goodyear Bellows 566-24-3-038
- Infinity SR9069
