AB-1R11-222
Description

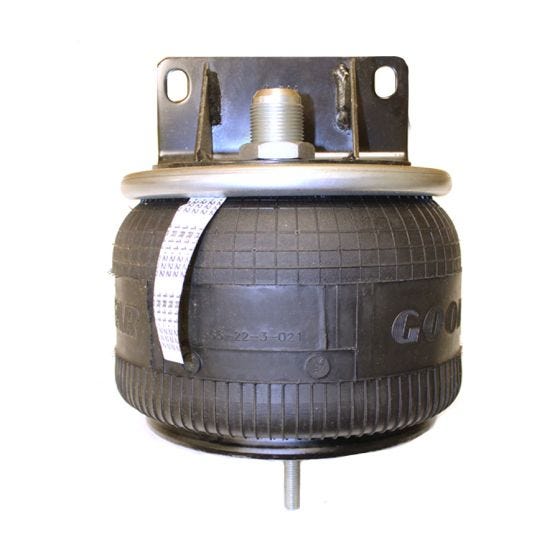

Genuine Goodyear Air Spring - Rolling Lobe w/ Steel Piston
Alternate SKU
1R11-222, W01-358-9625, 9625, 9 9-10 P 538, 68360, 452-9625, 352-9625, AB1DK20H-9625, 566.CT68360, 566.ER9625, AS-8538, AS-8538, K303-25, K303-23, 9 9-10 P 538 (BK)
Weight
18.00
- Attribute Value
- Product Name AB-1R11-222
- Top Plate Bolt Hole Quantity 1
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 8.5 in
- Piston Material Steel
- Minimum Height 6.2 in
- Maximum Height 12 in
- Top Plate Center To Center Diameter 2.25 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket Yes
- Bumper Yes
- Bellows Number 566-22-3-015, 566-22-3-021
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Kenworth
- Company Sku
- Automann AB1DK20H-9625, 566.CT68360, 566.ER9625
- Automann Bellows 1DK20H
- Continental 68360
- Continental Bellows 9 9-10
- Dayton 452-9625, 352-9625
- Firestone W01-358-9625
- Firestone Bellows 1T15LA0
- Flagg/Triangle AS-8538
- Flagg/Triangle Bellows 6415
- Goodyear 1R11-222
- Goodyear Bellows 566-22-3-015, 566-22-3-021
