AB-1R11-028
Description

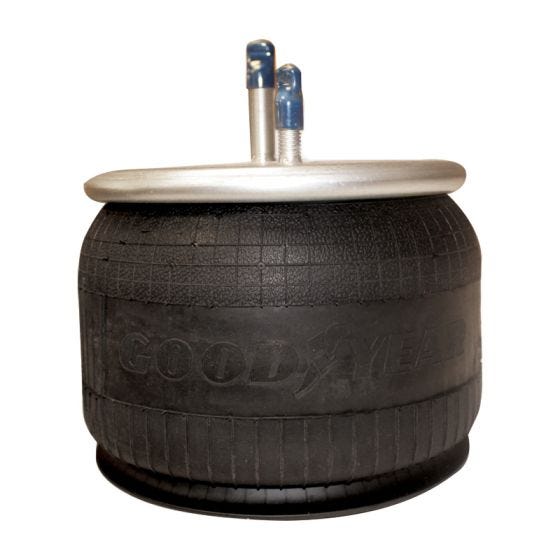

Genuine Goodyear Air Springs - Rolling Lobe w/ Steel Piston
Alternate SKU
AB1DK20D-9422, AB1DK20D9422, 352-9422, 3529422, 452-9422, 4529422, AS-8314, AS8314, S-13032, S13032, W01-358-9422, W013589422, 9422, 1R11-028, 1R11028, AB1R11028, 9 9-12 P 314, 9912P314, 64255
Weight
13.00
- Attribute Value
- Product Name AB-1R11-028
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 2
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.3 in
- Piston Material Steel
- Minimum Height 3.7 in
- Maximum Height 13 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 4.12 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper No
- Bellows Number 566-22-3-015, 566-22-3-021
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Kenworth
