99-170-ME

Description

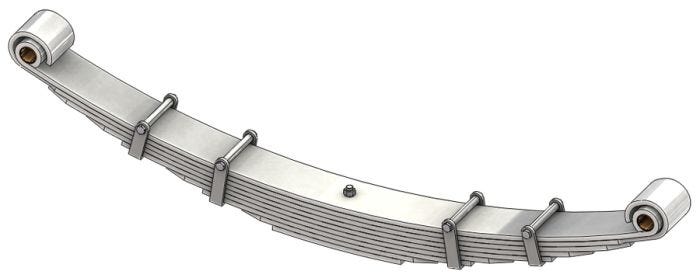

Leaf Spring
Alternate SKU
99-170, 99170, 53540075, 99170ME
Weight
146.00
  • Attribute Value
  • Product Name 99-170-ME
  • Axle Orientation Front
  • Leaf Width 4 in
  • Leaves 9
  • Pack Thickness 3.625 in
  • Length Axis 1 26.25 in
  • Length Axis 2 26.25 in
  • Free Arch Length 5.75 in
  • Grading Configuration 9/401
  • Pack Quantity 9
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Up Turned Eye
  • Bushings Included No
  • End 1 Bushing PLK
  • End 2 Bushing PLK
  • Helper Spring No
  • Load Rate 6000 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 99-170
  • Make Ottawa
USE AS LH SPRING WITH 99-168 AS RH; OR USE AS RH SPRING WITH 99-178 AS LH
