99-166-ME

Description

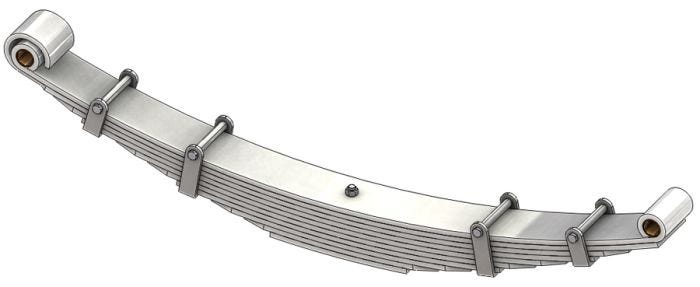

Leaf Spring
Alternate SKU
99-166, 99166, 53500054, 90007196, 99166ME
Weight
150.70
  • Attribute Value
  • Product Name 99-166-ME
  • Axle Orientation Front
  • Leaf Width 4 in
  • Leaves 10
  • Pack Thickness 4 in
  • Length Axis 1 25 in
  • Length Axis 2 25 in
  • Free Arch Length 5.125 in
  • Grading Configuration 10/401
  • Pack Quantity 10
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Up Turned Eye
  • Bushings Included No
  • End 1 Bushing PLK
  • End 2 Bushing PLK
  • Helper Spring No
  • Load Rate 6950 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 99-166
  • Make Autocar
  • Company Sku
  • Automann 99-166
  • Dayton 99-166
  • Ottawa 53500054, 90007196
LH; RH IS 99-164. WRAPPER PL-2 ONE END
