96-1323-OE
Description

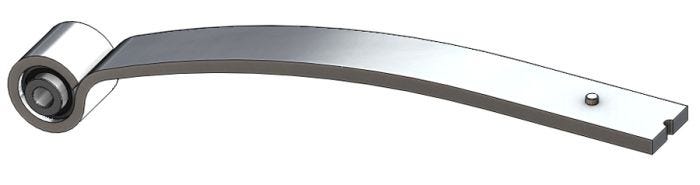

Genuine Hendrickson Leaf Spring Assembly w/ Radius Rod
Alternate SKU
96-1323, 961323, 21030468, 96-1353, 961353, 20521246, 961323OE
Weight
19.40
- Attribute Value
- Product Name 96-1323-OE
- Front/Rear Rear
- End 1 Attachment Type Berlin Eye
- End 1 Bushing RB290
- End 2 Bushing BER/RB290
- Free Arch Length -5.5
- Grading Configuration 1/660 FULL TAPER
- Number of Leaves 1
- Leaf Width 3.00
- Length Axis 1 24.5625
- Length Axis 2 3.625
- Pack Thickness 0.6875
- Radius Rod Leaf Length 24.5625
- Radius Rod Bushing RB290
- Notes WORKS AS RR LEAF WITH 96-1319
- Company Sku
- Dayton 96-1323
- Automann 96-1323
