96-1314-ME
Description

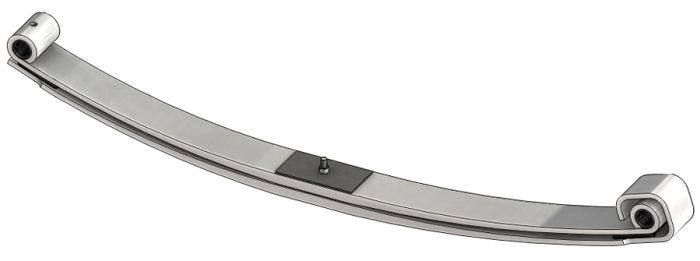

Tapered Leaf Spring
Alternate SKU
96-1314, 961314, 257811, 961314ME
Weight
105.50
- Attribute Value
- Product Name 96-1314-ME
- Axle Orientation Front
- Leaf Width 3.9375 in
- Leaves 2
- Pack Thickness 2.25 in
- Length Axis 1 31.3125 in
- Length Axis 2 27.5625 in
- Free Arch Length 4.375 in
- Grading Configuration 2/26 FULL TAPER
- Pack Quantity 2
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included No
- End 1 Bushing TB78
- End 2 Bushing TB78
- Helper Spring No
- Load Rate 6600 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 96-1314
- Make Volvo
