96-1269-ME
Description

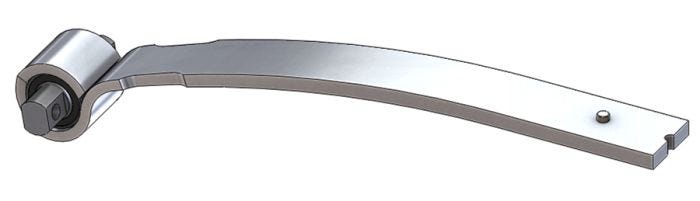

Tapered Leaf Spring Assembly w/ Radius Rod
Alternate SKU
96-1269-OE, 96-1269, 961269OE, 8086648, 961269ME
Weight
18.00
- Attribute Value
- Product Name 96-1269-ME
- Application White (Volvo)
- Front/Rear Rear
- End 1 Bushing RB164
- End 2 Bushing BER/RB259
- Free Arch Length -5.1875
- Grading Configuration 1/660 FULL TAPER
- Number of Leaves 1
- Leaf Width 3.00
- Length Axis 1 3.25
- Length Axis 2 24.375
- Pack Thickness 0.6875
- Radius Rod Leaf Length 3 5/8X23 3/16
- Notes WORKS AS RR LEAF WITH 96-1273
