90-363-ME
Description

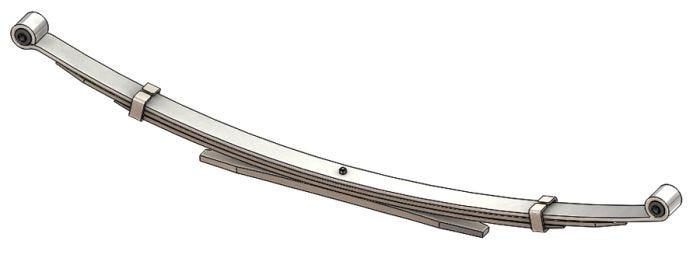

Two-Stage Leaf Spring (RH)
Alternate SKU
90-363-ID, 90-363, 90363ID, 90363, 482100C300, 90-339, 90339, 90363ME
Weight
60.50
- Attribute Value
- Product Name 90-363-ME
- Axle Orientation Rear
- Leaf Width 2.375 in
- Leaves 4
- Pack Thickness 2.1875 in
- Length Axis 1 32 in
- Length Axis 2 31.375 in
- Free Arch Length 5.5 in
- Grading Configuration 1/10 1/10.5 1/11 2ND 1/20 WEDGE
- Pack Quantity 5
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included Yes
- End 1 Bushing RB294
- End 2 Bushing RB311
- Helper Spring No
- Load Rate 1900 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 90-363
- Make Toyota
