90-363 HD-ME
Description

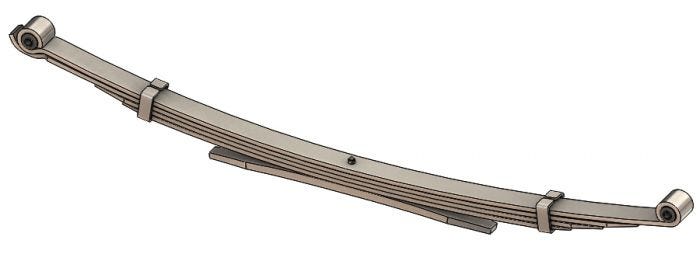

Heavy Duty Two-Stage Leaf Spring
Alternate SKU
90-363 HD-ID, 90-363HD, 90-363 HD, 90363HDID, 90363HD, 482100C300, 90-363-HD, 90363HDME, 90-363HD-ID, 90-363HD-ME
Weight
72.30
- Attribute Value
- Product Name 90-363 HD-ME
- Axle Orientation Rear
- Leaf Width 2.375 in
- Leaves 5
- Pack Thickness 2.5 in
- Length Axis 1 32 in
- Length Axis 2 31.375 in
- Free Arch Length 4.25 in
- Grading Configuration 4/11 2ND 1/20
- Pack Quantity 5
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included Yes
- End 1 Bushing RB294
- End 2 Bushing RB311
- Helper Spring No
- Load Rate 2500 lb
- Suspension Grade Type Heavy Duty
- Make Toyota
