90-203-ID
Description

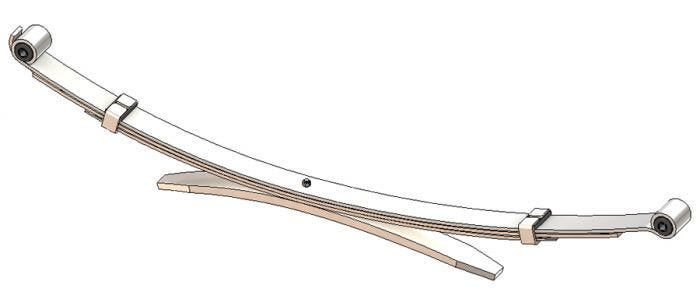

Two-Stage Leaf Spring
Alternate SKU
90-203, 90203ID, 90203, 4822004070, 90203ME, 90-203-ME
Weight
44.38
- Attribute Value
- Product Name 90-203-ID
- Axle Orientation Rear
- Leaf Width 2.36 in
- Leaves 4
- Pack Thickness 1.654 in
- Length Axis 1 24.09 in
- Length Axis 2 31.14 in
- Free Arch Length 6.77 in
- Grading Configuration 3/7 2ND 1/18 MM
- Pack Quantity 4
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included Yes
- End 1 Bushing RB192
- End 2 Bushing RB192
- Helper Spring No
- Load Rate 1100 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 90-203
- Make Toyota
