90-203 HD-ME
Description

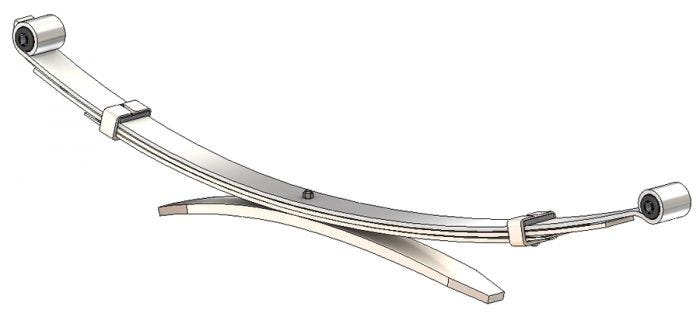

Heavy Duty Two-Stage Leaf Spring
Alternate SKU
90-203 HD-ID, 90-203HD, 90-203 HD, 90203HDID, 90203HD, 90-203-HD, 90203HDME, 90-203HD-ME, 90-203HD-ID
Weight
48.40
- Attribute Value
- Product Name 90-203 HD-ME
- Axle Orientation Rear
- Leaf Width 2.375 in
- Leaves 4
- Pack Thickness 1.875 in
- Length Axis 1 31.125 in
- Length Axis 2 24.125 in
- Free Arch Length 5 in
- Grading Configuration 2/9 1/8 2ND 1/20
- Pack Quantity 4
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included No
- End 1 Bushing RB192
- End 2 Bushing RB192
- Helper Spring No
- Load Rate 1500 lb
- Suspension Grade Type Heavy Duty
- Make Toyota
