90-203 HD-ID
Description

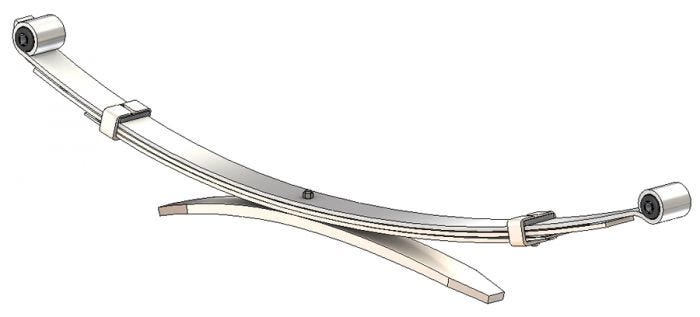

Heavy Duty Two-Stage Leaf Spring
Alternate SKU
90-203HD, 90-203 HD, 90203HDID, 90203HD, 90-203-HD, 90203HDME, 90-203HD-ID, 90-203 HD-ME, 90-203HD-ME 90-203HD-ID
Weight
48.40
- Attribute Value
- Product Name 90-203 HD-ID
- Axle Orientation Rear
- Leaf Width 2.36 in
- Leaves 4
- Pack Thickness 1.81 in
- Length Axis 1 24.09 in
- Length Axis 2 31.14 in
- Free Arch Length 5.63 in
- Grading Configuration 2/9 1/8 2ND 1/20 MM
- Pack Quantity 4
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included Yes
- End 1 Bushing RB192
- End 2 Bushing RB192
- Helper Spring No
- Load Rate 1500 lb
- Suspension Grade Type Heavy Duty
