90-171-ME

Description

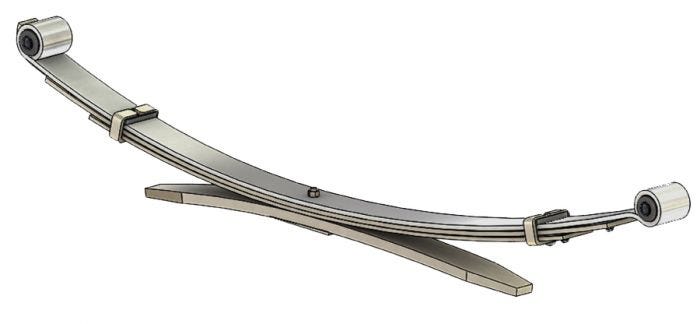

Two-Stage Leaf Spring
Alternate SKU
90-171, 90171, 90-171-US, 90171US, 48210-04081, 4821004081, 4821004080, 90171ME
Weight
39.00
  • Attribute Value
  • Product Name 90-171-ME
  • Application Toyota
  • Front/Rear Rear
  • End 1 Attachment Type Berlin Eye
  • End 1 Bushing RB192
  • End 2 Attachment Type Up Turned Eye
  • End 2 Bushing RB192
  • Free Arch Length 5
  • Grading Configuration 2/7 1/6 2ND 1/16
  • Capacity 1100
  • Number of Leaves 4
  • Leaf Width 2.375
  • Length Axis 1 28.625
  • Length Axis 2 22.5
  • Pack Thickness 1.4375
  • Make Toyota
  • Company Sku
  • AutoZone 90-171
  • Automann 90-171
  • Dayton 90-171
  • Toyota 4821004080
