90-169-CA
Description

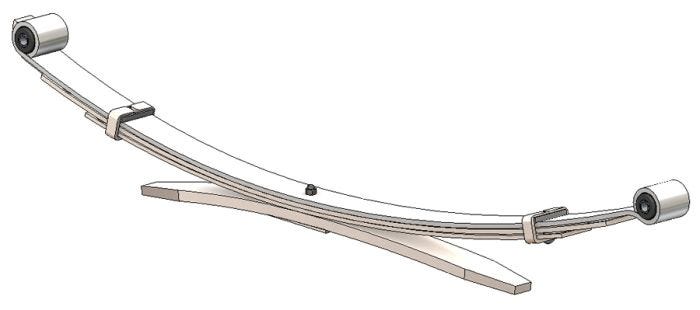

Two-Stage Leaf Spring
Alternate SKU
90-169, 90169, 4822004022, 90169CA
Weight (lb)
38.10
- Attribute Value
- Product Name 90-169-CA
- Make Toyota
- Axle Orientation Rear
- Leaf Width 2.375 in
- Leaves 4
- Grading Configuration 2/7 1/6 2ND 1/16 WEDGE
- Pack Thickness 1.4375 in
- Free Arch Length 4.9375 in
- Length Axis 1 28.625 in
- Length Axis 2 22.5 in
- Pack Quantity 5
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included Yes
- End 1 Bushing RB192
- End 2 Bushing RB192
- Helper Spring No
- Load Rate 1030 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 90-169
- Company Sku
- Automann 90-169
- Dayton 90-169
- Toyota 4822004022
