90-143-CA

Description

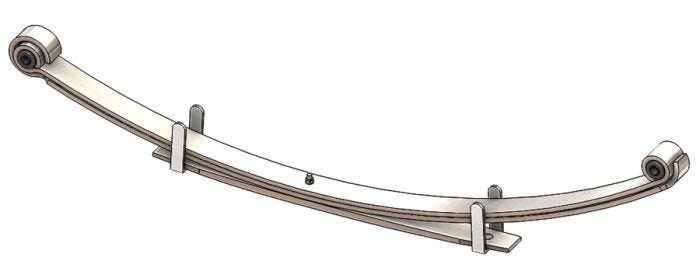

Two-Stage Leaf Spring
Alternate SKU
90-143, 90143, 4821034070, 4821034070A, 90143CA
Weight
42.80
  • Attribute Value
  • Product Name 90-143-CA
  • Axle Orientation Rear
  • Leaf Width 2.375 in
  • Leaves 3
  • Pack Thickness 1.3125 in
  • Length Axis 1 31.5 in
  • Length Axis 2 23.375 in
  • Free Arch Length 6.75 in
  • Grading Configuration 1/9 1/10 2ND 1/14
  • Pack Quantity 3
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Berlin Eye
  • Bushings Included Yes
  • End 1 Bushing RB192
  • End 2 Bushing RB192
  • Helper Spring No
  • Load Rate 1080 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 90-143
  • Make Toyota
  • Company Sku
  • Automann 90-143
  • Dayton 90-143
  • Toyota 4821034070, 4821034070A
TWO STAGE; REGULAR CAB
