75-260-ME
Description

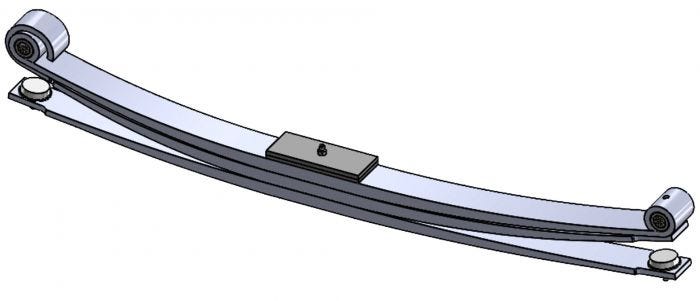

Two-Stage Leaf Spring
Alternate SKU
75-260, HP48110-3860, 48110-3860
Weight (lb)
267.12
- Attribute Value
- Product Name 75-260-ME
- Make Peterbilt
- Axle Orientation Front
- Leaf Width 4 in
- Leaves 3
- Grading Configuration PD/401 PD/447 2/1339 2ND 1/1260 FULL TAPER
- Pack Thickness 4.9 in
- Free Arch Length 4.875 in
- Length Axis 1 32.0 in
- Length Axis 2 38.25 in
- Pack Quantity 5
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included Yes
- End 1 Bushing TB81
- End 2 Bushing TB81
- Helper Spring No
- Load Rate 11500 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 75-260
- Company Sku
- Automann 75-260
- Dayton 75-260
- Flagg/Triangle 75-260
- Peterbilt 481103-860, HP48110-3860
