75-240-ME
Description

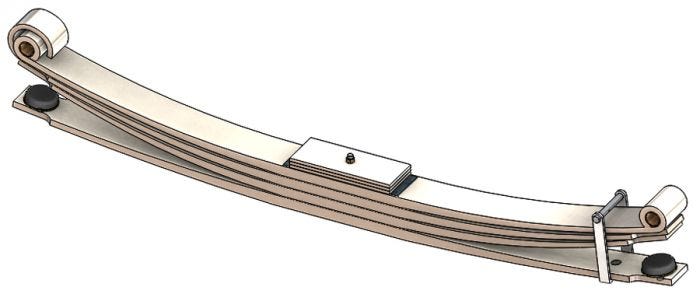

Tapered Two-Stage Leaf Spring
Alternate SKU
75-240, 75240, HP481103040, 75240ME
Weight
236.00
- Attribute Value
- Product Name 75-240-ME
- Axle Orientation Front
- Leaf Width 4 in
- Leaves 4
- Pack Thickness 5.125 in
- Length Axis 1 32 in
- Length Axis 2 32 in
- Free Arch Length 4.875 in
- Grading Configuration 3PD/323 3/999 2ND 1/1.063 FULL TAPER
- Pack Quantity 7
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included Yes
- End 1 Bushing RNK
- End 2 Bushing RNK
- Helper Spring No
- Load Rate 10500 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 75-240
- Make Peterbilt
- Company Sku
- Automann 75-240
- Dayton 75-240
- Peterbilt HP481103040
