75-224-ME

Description

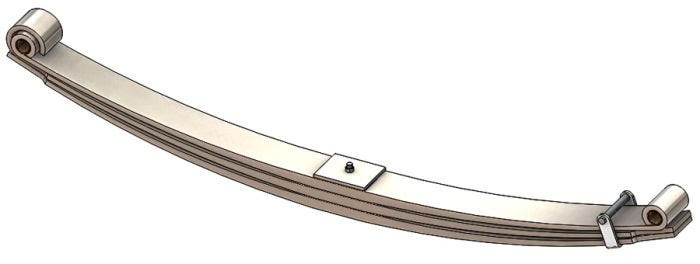

Tapered Leaf Spring
Alternate SKU
75-224, 75224, 0202889, 202889, 02-02889, 2-02889, 0202889B, 202889B, 75224ME
Weight
154.40
  • Attribute Value
  • Product Name 75-224-ME
  • Axle Orientation Front
  • Leaf Width 4 in
  • Leaves 3
  • Pack Thickness 3.4375 in
  • Length Axis 1 32 in
  • Length Axis 2 32 in
  • Free Arch Length 5.375 in
  • Grading Configuration PD/375 3/984 FULL TAPER
  • Pack Quantity 4
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Up Turned Eye
  • Bushings Included Yes
  • End 1 Bushing RNK
  • End 2 Bushing RNK
  • Helper Spring No
  • Load Rate 7200 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 75-224
  • Make Kenworth
  • Company Sku
  • Automann 75-224
  • Dayton 75-224
  • Peterbilt 0202889B
CONSTANT WIDTH
