75-212-ME

Description

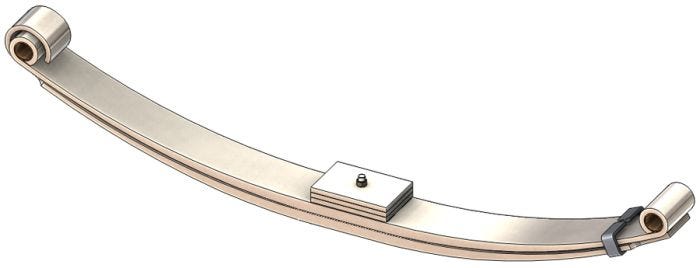

Tapered Leaf Spring
Alternate SKU
75-212, 75212, 75-212-ID, 75212ID, 202177, B816003, 0202177, 75212ME
Weight
87.00
  • Attribute Value
  • Product Name 75-212-ME
  • Axle Orientation Front
  • Leaf Width 4 in
  • Leaves 2
  • Pack Thickness 3 in
  • Length Axis 1 27 in
  • Length Axis 2 25.5 in
  • Free Arch Length 5.25 in
  • Grading Configuration 3PD/394 2/866 FULL TAPER
  • Pack Quantity 5
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Up Turned Eye
  • Bushings Included No
  • End 1 Bushing RNK
  • End 2 Bushing RNK
  • Helper Spring No
  • Load Rate 5400 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 75-212
  • Make Peterbilt
  • Company Sku
  • Automann 75-212
  • Dayton 75-212
  • Hendrickson 053278-000
  • Peterbilt 0202177, B816003
