75-210-ME

Description

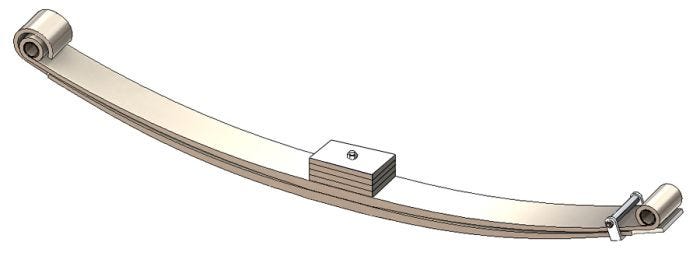

Tapered Leaf Spring
Alternate SKU
75-210, 75210, 202584, 75-236, 75236, 0202584, 75210ME
Weight
117.00
  • Attribute Value
  • Product Name 75-210-ME
  • Axle Orientation Front
  • Leaf Width 4 in
  • Leaves 2
  • Pack Thickness 3.1875 in
  • Length Axis 1 32.125 in
  • Length Axis 2 32.125 in
  • Free Arch Length 6.125 in
  • Grading Configuration 4PD/323 2/917 FULL TAPER
  • Pack Quantity 6
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Up Turned Eye
  • Bushings Included Yes
  • End 1 Bushing RNK
  • End 2 Bushing RNK
  • Helper Spring No
  • Load Rate 5600 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 75-210
  • Make Kenworth
CONSTANT WIDTH
