69-293-ID
Description

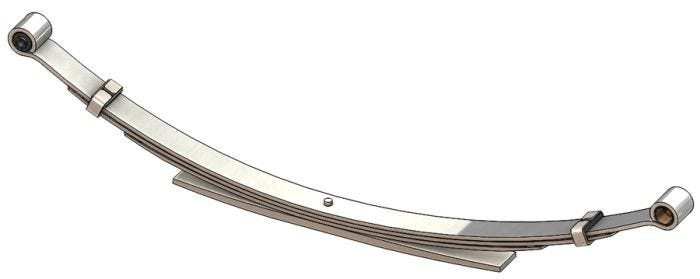

Two-Stage Leaf Spring
Alternate SKU
69-293, 69293ID, 69293, 55020EA20A, 55020-EA20A, 69293ME, 69-293-ME
Weight
39.50
- Attribute Value
- Product Name 69-293-ID
- Axle Orientation Rear
- Leaf Width 2.375 in
- Leaves 4
- Pack Thickness 1.625 in
- Length Axis 1 28.375 in
- Length Axis 2 25 in
- Free Arch Length 7.25 in
- Grading Configuration 3/8 2ND 1/16 MM
- Pack Quantity 4
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included Yes
- End 1 Bushing M6-4033
- End 2 Bushing RB303
- Helper Spring No
- Load Rate 3200 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 69-293
