69-285 HD-ME
Description

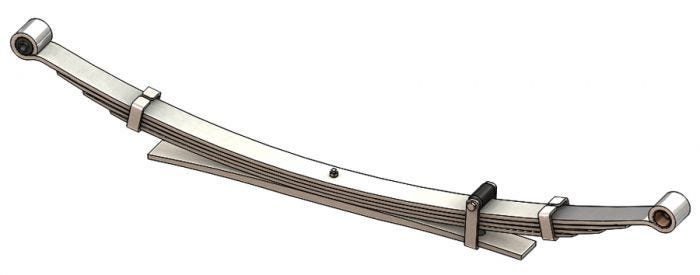

Heavy Duty Two-Stage Leaf Spring
Alternate SKU
69-285HD, 69285HD, 69-285-HD, 69285HDME
Weight
56.00
- Attribute Value
- Product Name 69-285 HD-ME
- Axle Orientation Rear
- Leaf Width 2.375 in
- Leaves 5
- Pack Thickness 2 in
- Length Axis 1 29 in
- Length Axis 2 26.25 in
- Free Arch Length 4.75 in
- Grading Configuration 1/9 3/8 2ND 1/18
- Pack Quantity 5
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing M6-4033
- End 2 Bushing RB303
- Helper Spring No
- Load Rate 3460 lb
- Suspension Grade Type Heavy Duty
- Make Nissan
