69-277-ME
Description

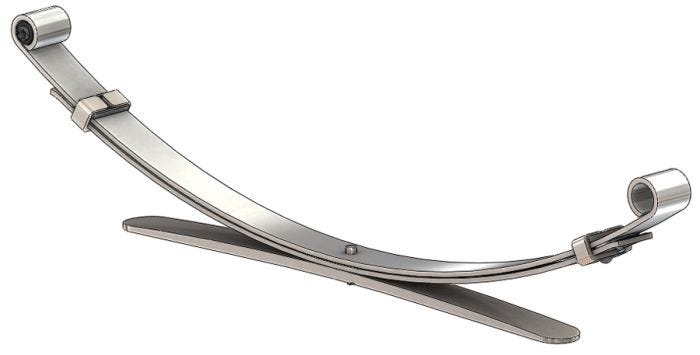

Two-Stage Leaf Spring
Alternate SKU
69-277, 69277, 55029Z501, 550209Z501, 69277ME
Weight
29.70
- Attribute Value
- Product Name 69-277-ME
- Axle Orientation Rear
- Leaf Width 2.375 in
- Leaves 3
- Pack Thickness 1.125 in
- Length Axis 1 23.625 in
- Length Axis 2 23.75 in
- Free Arch Length 7.375 in
- Grading Configuration 2/7 2ND 1/14
- Pack Quantity 3
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included No
- End 2 Bushing RB201
- End 1 Attachment Inside Diameter 40 mm
- Helper Spring No
- Load Rate 1200 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 69-277
- Make Nissan
- Company Sku
- AutoZone 69-277
- Automann 69-277
- Dayton 69-277
- Nissan 550209Z501
