59-582-ME

Description

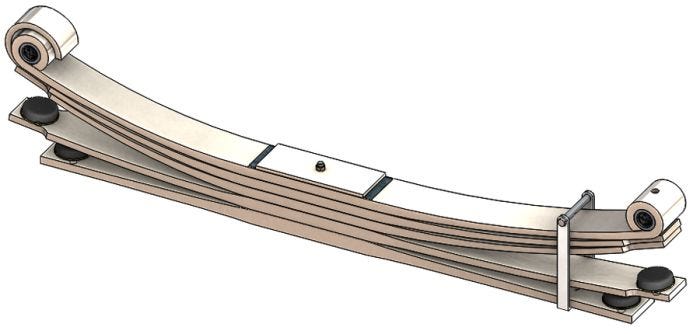

Tapered Three-Stage Leaf Spring
Alternate SKU
59-582, 59582, B816022003, 59-494, 59494, 59582ME
Weight
275.40
  • Attribute Value
  • Product Name 59-582-ME
  • Leaf Width 4 in
  • Leaves 5
  • Length Axis 1 32 in
  • Length Axis 2 27 in
  • Free Arch Length 5.25 in
  • Front/Rear Front
  • Spring Research Institute Number 59-582
  • Make Kenworth
  • Axle Orientation Front
  • Grading Configuration PD/315 1/906 2/945 2ND 1/1.102 3RD 1/1.339 FULL TAPER
  • Bushings Included Yes
  • Helper Spring No
  • Load Rate 12000 lb
  • Suspension Grade Type Standard
  • Pack Quantity 6
  • End 1 Attachment Type Up Turned Eye
  • End 1 Bushing TB81
  • End 2 Attachment Type Up Turned Eye
  • End 2 Bushing TB81
  • Pack Thickness 5.75 in
  • Company Sku
  • Automann 59-582
  • Dayton 59-582
  • Kenworth B816022003
