59-566-ME
Description

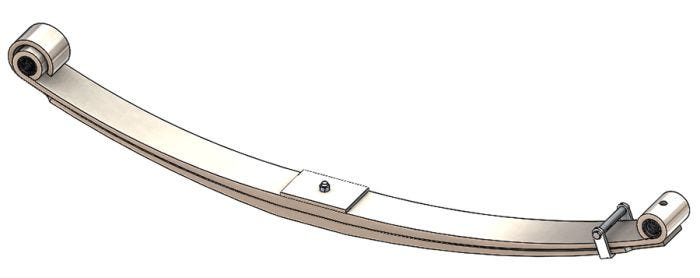

Tapered Leaf Spring
Alternate SKU
B81-6013-003, B816013003, 59-566, 59566ME
Weight (lb)
108.70
- Attribute Value
- Product Name 59-566-ME
- Make Kenworth, Peterbilt
- Axle Orientation Front
- Leaf Width 4 in
- Leaves 2
- Grading Configuration PD/315 2/984 FULL TAPER
- Pack Thickness 2.33 in
- Free Arch Length 6.06 in
- Length Axis 1 27.37 in
- Length Axis 2 32.25 in
- Pack Quantity 3
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included Yes
- End 1 Bushing TB77
- End 2 Bushing TB77
- Helper Spring No
- Load Rate 6600 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 59-566
- Company Sku
- Automann 59-566
- Dayton 59-566
- Flagg/Triangle 59-566
- Kenworth B81-6013-003
- Peterbilt B81-6013-003
