59-560-ME

Description

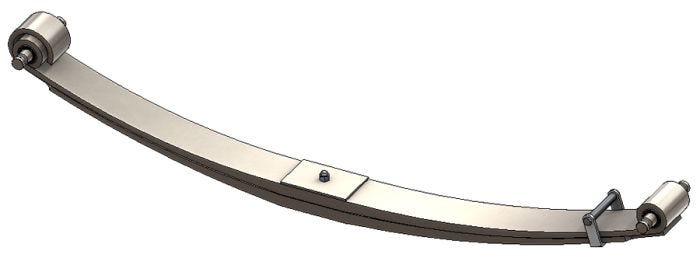

Tapered Leaf Spring [w/ RB295/RB295 Bushings]
Alternate SKU
59-560, 59560, B816012002, 59560ME
Weight
104.59
  • Attribute Value
  • Product Name 59-560-ME
  • Axle Orientation Front
  • Leaf Width 4 in
  • Leaves 2
  • Pack Thickness 2.3125 in
  • Length Axis 1 32.25 in
  • Length Axis 2 27.375 in
  • Free Arch Length 6.1875 in
  • Grading Configuration PD/194 2/1.024 FULL TAPER
  • Pack Quantity 3
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Up Turned Eye
  • Bushings Included No
  • End 1 Bushing RB295
  • End 2 Bushing RB295
  • Helper Spring No
  • Load Rate 6200 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 59-560
  • Make Kenworth
