59-548-ME
Description

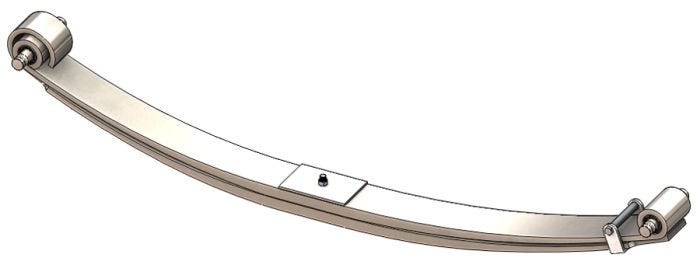

Tapered Leaf Spring [w/ RB328/RB295 Bushings]
Alternate SKU
59-548-ID, 59-548, 59548ID, 59548, 59-706, 59706, 053282-000, 53282-000, 053282000, 53282000, 59-548-OE, 59548OE, B816012001, 59548ME, 59-706-ME, 59706ME
Weight
103.70
- Attribute Value
- Product Name 59-548-ME
- Axle Orientation Front
- Leaf Width 4 in
- Leaves 2
- Pack Thickness 2.25 in
- Length Axis 1 32.25 in
- Length Axis 2 27.375 in
- Free Arch Length 6.1875 in
- Grading Configuration PD/214 2/984 FULL TAPER
- Pack Quantity 3
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included No
- End 1 Bushing RB328
- End 2 Bushing RB295
- Helper Spring No
- Load Rate 6000 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 59-548
- Make Kenworth
