59-366-ME
Description

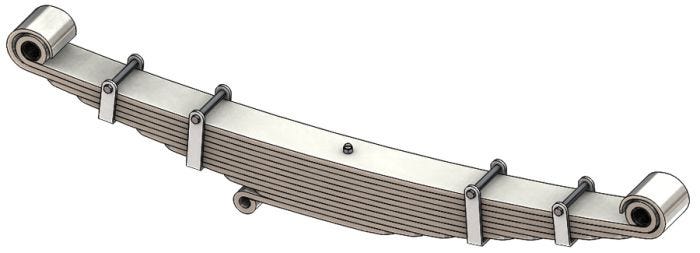

Leaf Spring w/Shock Eye
Alternate SKU
59-366, 59366, K223997, 59-448, 59448, 59366ME
Weight
235.14
- Attribute Value
- Product Name 59-366-ME
- Axle Orientation Front
- Leaf Width 4 in
- Leaves 10
- Pack Thickness 5.5 in
- Length Axis 1 27.0625 in
- Length Axis 2 27.0625 in
- Free Arch Length 2.625 in
- Grading Configuration 10/499 SHOCKEYE/499
- Pack Quantity 11
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included No
- End 1 Bushing TB68
- End 2 Bushing TB68
- Helper Spring No
- Load Rate 8420 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 59-366
- Make Kenworth
