56-176-CA
Description

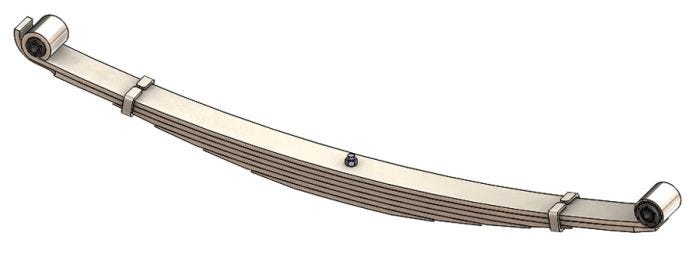

Leaf Spring
Alternate SKU
56-176, 56176, 97149025, 8971490250, 56176CA
Weight
70.00
- Attribute Value
- Product Name 56-176-CA
- Axle Orientation Front
- Leaf Width 2.75 in
- Leaves 6
- Pack Thickness 2.9375 in
- Length Axis 1 25.5625 in
- Length Axis 2 25.5625 in
- Free Arch Length 3.5625 in
- Grading Configuration 1/10 4/11 1/10 SBB/8
- Pack Quantity 7
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included Yes
- End 1 Bushing RB186
- End 2 Bushing RB228
- Helper Spring No
- Load Rate 4000 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 56-176
- Make GMC, Isuzu
- Company Sku
- Automann 56-176
- Dayton 56-176
- Isuzu 97149025, 8971490250
