56-149-CA
Description

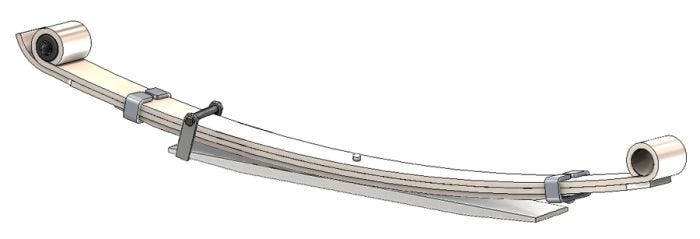

Two-Stage Leaf Spring
Alternate SKU
56-149, 56149, 8970162870, 56149CA
Weight
34.92
- Attribute Value
- Product Name 56-149-CA
- Axle Orientation Rear
- Leaf Width 2.375 in
- Leaves 4
- Pack Thickness 1.4375 in
- Length Axis 1 21.6875 in
- Length Axis 2 25.625 in
- Free Arch Length 8 in
- Grading Configuration 3/7 2ND 1/16
- Pack Quantity 4
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included Yes
- End 1 Bushing RB209
- End 2 Attachment Inside Diameter 30 mm
- Helper Spring No
- Load Rate 1700 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 56-149
- Make GMC, Isuzu
- Company Sku
- Automann 56-149
- Dayton 56-149
- Isuzu 8970162870
