56-117-ME
Description

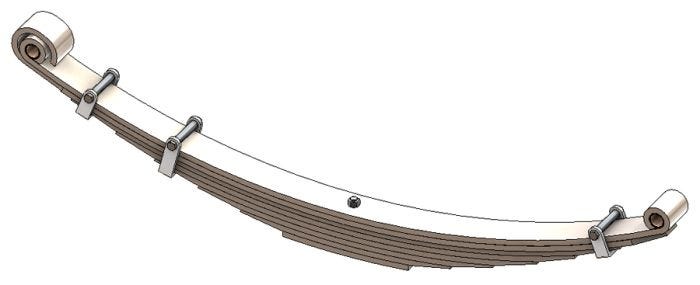

Leaf Spring
Alternate SKU
56-117, 56117, 1513107131, 94051012, 56117ME
Weight
92.00
- Attribute Value
- Product Name 56-117-ME
- Axle Orientation Rear
- Leaf Width 2.75 in
- Leaves 8
- Pack Thickness 3.4375 in
- Length Axis 1 25.5625 in
- Length Axis 2 25.5625 in
- Free Arch Length 6 in
- Grading Configuration 8/11
- Pack Quantity 8
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included Yes
- End 1 Bushing M7-3025
- End 2 Bushing M7-3025
- Helper Spring No
- Load Rate 5400 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 56-117
- Make GMC, Isuzu
- Company Sku
- Automann 56-117
- Dayton 56-117
- Isuzu 94051012, 1513107131
