55-160-ME
Description

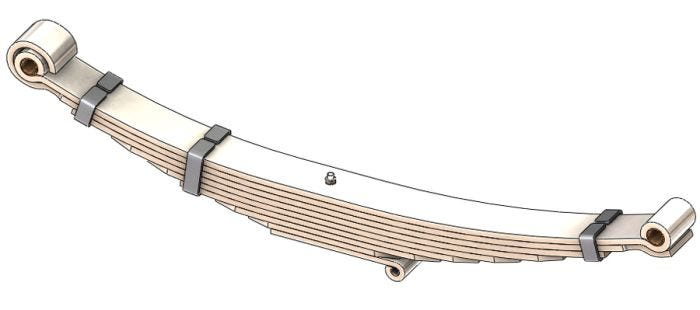

Leaf Spring w/Shock Eye
Alternate SKU
55-160, 55160, 1667488C92, 55160ME
Weight
174.60
- Attribute Value
- Product Name 55-160-ME
- Axle Orientation Front
- Leaf Width 4 in
- Leaves 8
- Pack Thickness 4.125 in
- Length Axis 1 29 in
- Length Axis 2 25 in
- Free Arch Length 4.25 in
- Grading Configuration 4/527 4/499 SHOCKEYE/447 BRACKET (NOT SUPPLIED)
- Pack Quantity 9
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing RNK
- End 2 Bushing RNK
- Helper Spring No
- Load Rate 8100 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 55-160
- Make Navistar/International
