55-1249-ME
Description

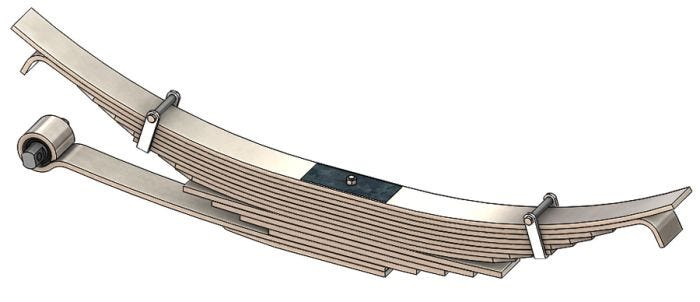

Two-Stage Leaf Spring w/ Radius Rod
Alternate SKU
55-1249, 551249, 360919C91, 3609194C91, 551249ME
Weight
180.00
- Attribute Value
- Product Name 55-1249-ME
- Axle Orientation Rear
- Leaf Width 3 in
- Leaves 12
- Pack Thickness 6.8125 in
- Length Axis 1 30.25 in
- Length Axis 2 30.25 in
- Free Arch Length 7.125 in
- Grading Configuration 8/423 2ND 4/499 RR 2/447
- Pack Quantity 14
- End 1 Attachment Type Hook
- End 2 Attachment Type Hook
- Bushings Included Yes
- Radius Rod Arch Length 7.13 in
- Radius Rod Leaf Length 7.13 in
- Radius Rod Leaf Bushing RB259
- Helper Spring No
- Load Rate 8800 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 55-1249
- Make Navistar/International
- Company Sku
- Automann 55-1249
- Dayton 55-1249
- Navistar/International 3609194C91
