55-1246-ME
Description

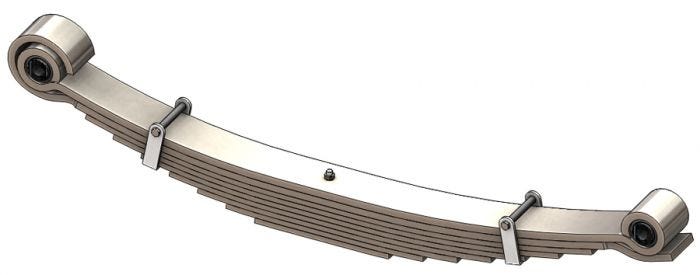

Leaf Spring
Alternate SKU
55-1246, 551246, 3540084C91, 551246ME
Weight
206.30
- Attribute Value
- Product Name 55-1246-ME
- Axle Orientation Front
- Leaf Width 4 in
- Leaves 9
- Pack Thickness 4.75 in
- Length Axis 1 29 in
- Length Axis 2 25 in
- Free Arch Length 4 in
- Grading Configuration 1/660 1/625 7/473
- Pack Quantity 9
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included Yes
- End 1 Bushing RB269
- End 2 Bushing RB269
- Helper Spring No
- Load Rate 8100 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 55-1246
- Make Navistar/International
