55-1197-CH
Description

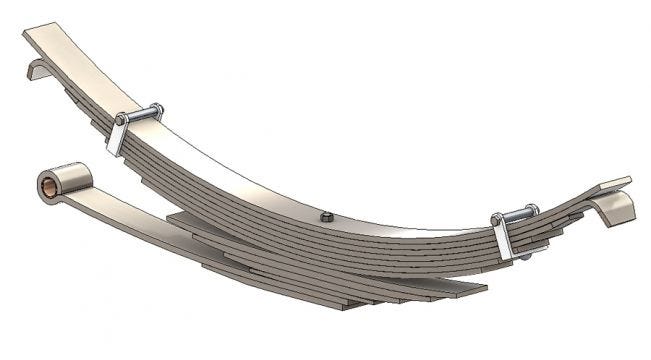

Two-Stage Leaf Spring w/ Radius Rod
Alternate SKU
55-1197, 551197, 55-1197-ME, 551197ME, 2027488C91, 551197CH
Weight
163.40
- Attribute Value
- Product Name 55-1197-CH
- Axle Orientation Rear
- Leaf Width 3 in
- Leaves 11
- Pack Thickness 6.25 in
- Length Axis 1 30.25 in
- Length Axis 2 30.25 in
- Free Arch Length 7.75 in
- Grading Configuration 7/401 2ND 4/499 RR 2/447
- Pack Quantity 13
- End 1 Attachment Type Hook
- End 2 Attachment Type Hook
- Bushings Included Yes
- Radius Rod Arch Length 7.75 in
- Radius Rod Leaf Length 7.75 in
- Radius Rod Leaf Bushing RNG
- Helper Spring No
- Load Rate 8200 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 55-1197
- Make Navistar/International
- Company Sku
- Automann 55-1197
- Dayton 55-1197
- Navistar/International 2027488C91
