50-220-OE
Description

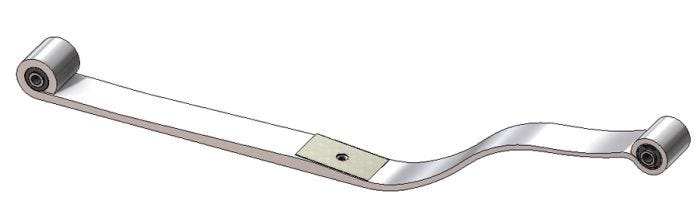

Genuine Hendrickson Tapered Leaf Spring-AIRTEK
Alternate SKU
50-220, 50220, 64772000, 64772-000, 20551557, 064772-000, 064772000, 50220OE
Weight
56.00
- Attribute Value
- Product Name 50-220-OE
- Axle Orientation Front
- Leaf Width 4 in
- Leaves 1
- Pack Thickness 1.1875 in
- Length Axis 1 27.3125 in
- Length Axis 2 32.125 in
- Free Arch Length 4.875 in
- Grading Configuration 1/1095 FULL TAPER
- Pack Quantity 1
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included Yes
- End 1 Bushing RB302
- End 2 Bushing RB300
- Helper Spring No
- Load Rate 7000 lb
- Suspension Grade Type Premium
- Spring Research Institute Number 50-220
- Make Hendrickson
- Company Sku
- Automann 50-220
- Dayton 50-220
- Hendrickson 20551557
