46-1464-ME
Description

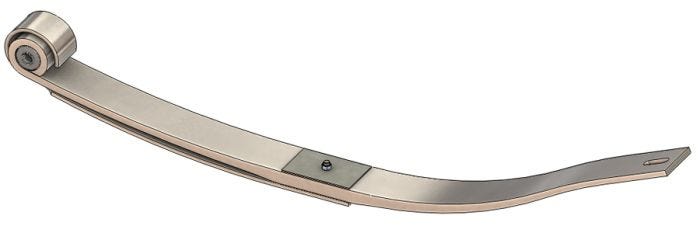

Tapered Leaf Spring 1.5/Leaf (Replaces 46-2014)
Alternate SKU
46-1464, 461464, 46-1464-OE, 461464OE, A1616789000, A16-16789-000, 461464ME, 46-2014, 462014, A16-21026-000, A1621026000, 46-1464-ID, 461464ID
Weight
68.00
- Attribute Value
- Product Name 46-1464-ME
- Axle Orientation Front
- Leaf Width 4 in
- Leaves 1.5
- Pack Thickness 1.5625 in
- Length Axis 1 33 in
- Length Axis 2 26 in
- Free Arch Length 6.625 in
- Grading Configuration 1/1.085 1/323 FULL TAPER
- Pack Quantity 1.5
- End 2 Attachment Type Up Turned Eye
- Bushings Included No
- End 2 Bushing RB233
- Helper Spring No
- Load Rate 6000 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 46-1464
- Make Freightliner
- Company Sku
- Automann 46-1464
- Dayton 46-1464
- Flagg/Triangle 46-2014
- Freightliner A16-16789-000, A16-21026-000
