46-1296-ME

Description

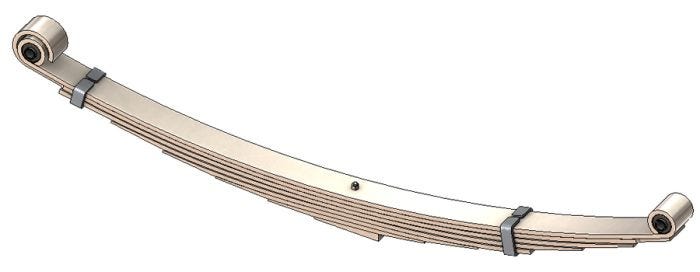

Leaf Spring
Alternate SKU
46-1296, 461296, A1614436000, 461296ME
Weight
88.10
  • Attribute Value
  • Product Name 46-1296-ME
  • Axle Orientation Front
  • Leaf Width 3 in
  • Leaves 7
  • Pack Thickness 2.5 in
  • Length Axis 1 29 in
  • Length Axis 2 29 in
  • Free Arch Length 4.25 in
  • Grading Configuration 7/360 WEDGE
  • Pack Quantity 8
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Up Turned Eye
  • Bushings Included No
  • End 1 Bushing RB135
  • End 2 Bushing RB135
  • Helper Spring No
  • Load Rate 2500 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 46-1296
  • Make Freightliner
  • Company Sku
  • Automann 46-1296
  • Dayton 46-1296
  • Freightliner A1614436000
3/8" CENTERBOLT
