46-1250-ME

Description

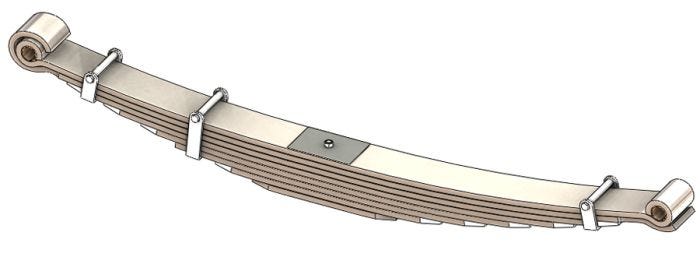

Leaf Spring
Alternate SKU
46-1250, 461250, 6803200702, 461250ME
Weight
204.11
  • Attribute Value
  • Product Name 46-1250-ME
  • Axle Orientation Front
  • Leaf Width 4 in
  • Leaves 8
  • Pack Thickness 4.6875 in
  • Length Axis 1 33.0625 in
  • Length Axis 2 27.9375 in
  • Free Arch Length 2.9375 in
  • Grading Configuration 8/527
  • Pack Quantity 8
  • End 1 Attachment Type Berlin Eye
  • End 2 Attachment Type Berlin Eye
  • Bushings Included No
  • End 1 Bushing RNK
  • End 2 Bushing RNK
  • Helper Spring No
  • Load Rate 8000 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 46-1250
  • Make Freightliner
