43-803-ME

Description

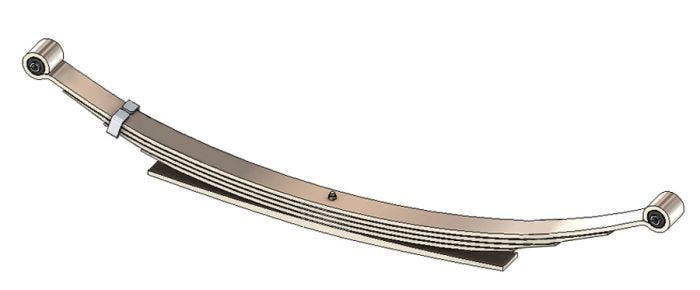

Two-Stage Leaf Spring
Alternate SKU
43-803, 43803, 43-803-ID, 43803ID, E3TZ5560M, 43803ME
Weight
75.20
  • Attribute Value
  • Product Name 43-803-ME
  • Axle Orientation Rear
  • Leaf Width 3 in
  • Leaves 5
  • Pack Thickness 2.25 in
  • Length Axis 1 31 in
  • Length Axis 2 25 in
  • Free Arch Length 6.875 in
  • Grading Configuration 4/360 2ND 1/788
  • Pack Quantity 5
  • End 1 Attachment Type Berlin Eye
  • End 2 Attachment Type Berlin Eye
  • Bushings Included Yes
  • End 1 Bushing RB157
  • End 2 Bushing RB158
  • Helper Spring No
  • Load Rate 2810 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 43-803
  • Make Ford
