43-701-CA

Description

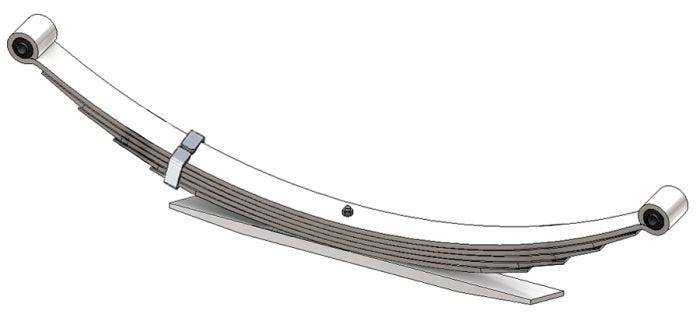

Two-Stage Leaf Spring
Alternate SKU
43-701, 43701, E0TZ5560H, 43701CA
Weight
89.00
  • Attribute Value
  • Product Name 43-701-CA
  • Axle Orientation Rear
  • Leaf Width 3 in
  • Leaves 6
  • Pack Thickness 2.6875 in
  • Length Axis 1 31 in
  • Length Axis 2 25 in
  • Free Arch Length 4.25 in
  • Grading Configuration 1/423 2/380 2/360 2ND 1/744
  • Pack Quantity 6
  • End 1 Attachment Type Berlin Eye
  • End 2 Attachment Type Berlin Eye
  • Bushings Included Yes
  • End 1 Bushing RB157
  • End 2 Bushing RB158
  • Helper Spring No
  • Load Rate 2975 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 43-701
  • Make Ford
  • Company Sku
  • Automann 43-701
  • Dayton 43-701
  • Ford E0TZ5560H
TWO STAGE
