43-390-ME

Description

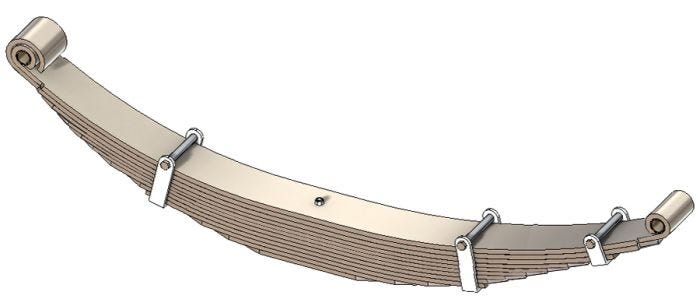

Leaf Spring
Alternate SKU
43-390, 43390, D0HA5310G, D0HZ5310C, 43390ME
Weight
197.00
  • Attribute Value
  • Product Name 43-390-ME
  • Axle Orientation Front
  • Leaf Width 4 in
  • Leaves 12
  • Pack Thickness 5.8125 in
  • Length Axis 1 29.3125 in
  • Length Axis 2 23.8125 in
  • Free Arch Length 5.25 in
  • Grading Configuration 8/447 4/401
  • Pack Quantity 12
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Up Turned Eye
  • Bushings Included No
  • End 1 Bushing NJK
  • End 2 Bushing NJK
  • Helper Spring No
  • Load Rate 9200 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 43-390
  • Make Ford
FIRST DESIGN
