43-1681-ME
Description

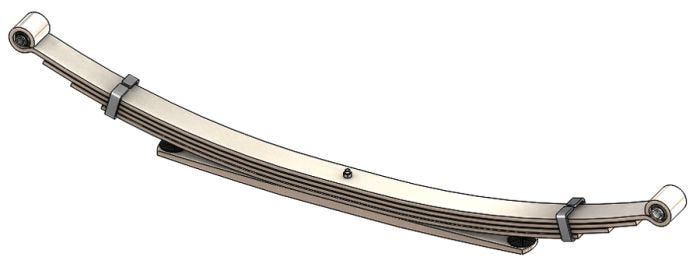

Two-Stage Leaf Spring
Alternate SKU
43-1681, 431681, 7C345560FG, 7C3Z5560FD, 431681ME
Weight
107.90
- Attribute Value
- Product Name 43-1681-ME
- Axle Orientation Rear
- Leaf Width 3 in
- Leaves 5
- Pack Thickness 2.85 in
- Length Axis 1 33.1875 in
- Length Axis 2 33.1875 in
- Free Arch Length 6 in
- Grading Configuration 1/423 3/401 2ND 1/887
- Pack Quantity 5
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing RB309
- End 2 Bushing RB310
- Helper Spring No
- Load Rate 3000 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 43-1681
- Make Ford
